Lab 5: Rates of Photosynthesis in Response to Increasing Light Intensity

Objectives

1. Generate hypotheses about rates of photosynthesis in response to increasing light intensity about four plant species.
2. Test those hypotheses by plotting light intensity versus photosynthesis rates for four plant species.


Lab 5 Overview

I. Formulate hypotheses about photosynthesis rates in plants from different environments

II. Test hypotheses about photosynthesis rates

a. Calculate the CO₂ exchange rate

Photosynthesis: Background

Photosynthesis is the fundamental source of energy input for most terrestrial and aquatic ecosystems. As its name suggests, photosynthesis is a process by which photons (packets of light energy) are converted to chemical energy and used to synthesize metabolites within the organism. Photosynthesis involves the fixation of carbon dioxide into sugars with a simultaneous release of O₂.

6 CO₂ + 6 H₂0 + light → C₆H₁₂O₆ + 6 O₂

Remember that plants, like all other living organisms, need a source of organic carbon to grow, reproduce etc. The ultimate source of this organic carbon, at least in the terrestrial environment, is atmospheric carbon in the form of inorganic gaseous CO₂ (one of the culprits in global warming). CO₂ is needed in the chloroplasts, the sites of photosynthesis, where sunlight is used to transform the inorganic form of carbon (CO₂) to a form of organic carbon such as glucose (C₆H₁₂O₆), useful as a source of both energy and building materials. However, to enter a mesophyll cell and the chloroplast the atmospheric CO₂ must dissolve in water and diffuse through moistened thin membranes to the sites of photosynthesis. This creates an obvious dilemma. How do plants expose thin moist membranes to the dry atmosphere without losing tremendous amounts of water? One could view the leaf as natural selection's answer to this problem. The moistened gas exchange surfaces (mesophyll cells) became internalized between a water proof skin (epidermis with cuticle) with tiny adjustable pores (stomata and guard cells) allowing CO₂ to enter by diffusion, but at the same time retaining the capability of preventing excessive diffusional water loss. These morphological, anatomical, and physiological features were, of course, the focus of lab 3 and 4.

The process of photosynthesis involves the exchange of gases between the leaf and the environment. The leaf takes up CO₂ and evolves O₂, usually in a 1:1 ratio. Therefore, when we enclose the leaf in a lighted chamber, air passing through the chamber will become depleted in CO₂ and enriched in O₂. By measuring the rate at which these gases are exchanged, the rate of photosynthesis can be determined.

In the first part of lab you will explore how photosynthesis varies with light intensity in leaves of your plant species. You will measure CO₂ consumption in plant leaves using an Infra Red Gas Analyzer (IRGA). This Qubit® Gas Analyzing system measures the concentration of CO₂ in the gas leaving the leaf chamber. Calculation of the difference in CO₂, with and without the presence of a leaf, and measurement of the flow rate of gas through the chamber, allows calculation of photosynthetic CO₂ fixation rate.

At the end of this first experiment, we will make measurements after turning off the light, and thereby, arresting photosynthesis. Thus, we can measure respiration. You may be more familiar with cellular respiration in animals where energy is released from sugar with ATP and water as by-products when O₂ is breathed in and CO₂ is released. However, the process is much more complicated in plants. Plants respire at all times of the day, in light and dark. Many plants do not release this CO₂ because it is used up right away in photosynthesis. O₂ generated during photosynthesis in light conditions can be used by the plant in respiration before it is released. In the dark, when photosynthesis is not converting radiant into chemical energy, respiration is the dominant process, and therefore, more O₂ will be used than created, resulting in a net increase in CO₂.

Measuring the Rate of Photosynthsis

Setting up the Experiment
Please be sure to open the following page that shows the labeled Qubit setup and refer to it while setting up and running the experiment: Photosynthesis Qubit Setup.

For your experiment, choose a young but fully mature leaf that will completely fill the leaf chamber. Carefully open the chamber, position the leaf as flat as possible, and seal the chamber tightly. The area of the chamber, and thus of the leaf that fills it, is 9 cm².

1. Check that both gas bags are full and all connections are open. Set the flow meter for 200 ml min^-1 (0.2 liters min^-1).
2. There is an incandescent light available to illuminate the whole plant outside the chamber. Keep the light at least 10 inches away from the plant to prevent leaf damage from the heat. DO NOT USE UNLESS NECESSARY.
3. Open the 0-2000 setup.cmbl file, and a window will open listing 4 sensors: CO₂ Analyzer, Temperature Sensor, LED Light, and Relative Humidity. Select each from the drop-down menu and click connect.

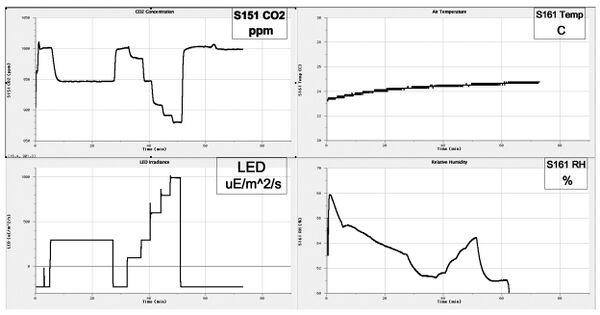

Fig. 5.1. Carbon dioxide exchange in a plant leaf measured with an InfraRed Gas Analyzer (IRGA). The leaf of a water hyacinth (Eichhornia crassipes), was placed in a Qubit® gas analyzing chamber and light intensity (irradiance) was increased in intervals.

        4. Immediately save your file by selecting "SAVE AS" and giving the file an appropriate name (e.g., Rhoeo Bench 2). This file is necessary for your data to be saved.
        5. Allow the leaf to acclimate in the sealed chamber for at least 20 minutes.
        6. Turn on the LED and adjust its illumination output to about 800 µE m^-2 s^-1, unless otherwise instructed. On the computer screen you will see 4 graphs (Fig 5.1): CO₂ concentration (upper left), LED Irradiance (lower left),  Air Temperature (upper right), and Relative Humidity (lower right). Keep an eye on the irradiance and CO₂ concentration.
        7. Set the recording so it will not turn off. To do this, go to Experiment: extend collection: and set it for 90 min or longer.
        8. Click: Collect (upper middle green button on the LoggerPro tool bar).

---

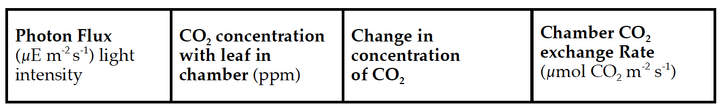

Draft a data table in your lab notebook to document the changing CO₂ concentrations at different light intensities. Parameters should include Photon Flux, Reference CO₂ Concentration, CO₂ Concentration with Leaf in the Chamber (ppm), ΔCO₂ concentration (ppm), and Chamber CO₂ Exchange Rate (µmol CO₂ m^-2 s^-1).

Also be sure to record each of these parameters: Plant Name, Temperature (°C), Flow rate (ml min^-1), and Leaf Area (both cm² and as converted to m²).

---

Running the Experiment
To run the experiment:

1. Set the LED illumination back to 0 µE m^-2 s^-1. (Light is measured as electric current flows through the analyzer. There is a small amount of current running through even when the light is not on. The program sometimes translates this as being below zero.)
2. Continue to “collect” until the recording stabilizes (5-20 minutes, depending on the plant).
3. While you are waiting, adjust the y-axis by double clicking on the axis. A window will open with a tab labeled “Axes Options”. Click on the tab and enter an appropriate upper and lower limit for the y-axis. This will adjust the scale to emphasize the small changes in CO₂.
4. Check frequently to make sure you are recording. The system will sometimes stop recording if you manipulate the screen in any way, so avoid multitasking while collecting data. You can monitor the changes in data by holding the cursor over the graphed line, this will display the y-values in the left-hand corner of the window.
5. Record the CO₂ concentration in your notebook when STEADY STATE conditions are attained.
6. Change the output of the light source from low light to high light in this order: 100, 300, 600, 800, 1000 µE m^-2 s^-1. Observe the stepwise decrease in the level of CO₂ in the chamber. Why are the levels of CO₂ decreasing? Typically, there is a rapid decrease in CO₂ concentration followed by a more gradual decrease and then a leveling off as the leaf responds to increased light level.
7. Turn the light down to 0 and observe that the CO₂ concentration in the analysis gas increases again. Record this CO₂ concentration when it reaches a steady state value.
8. Finally remove the leaf from the chamber, reseal the chamber, and collect data until the level of CO₂ stabilizes. This is your input or reference CO₂ concentration (should be between 900-1100 ppm). It represents the concentration of CO₂ in the gas bags. It should be slightly lower than the CO₂ level when the light was off. Why? What effect would a leaf in the dark have on CO₂ concentration?
9. After you have completed measuring at all light levels, stop data collection by clicking on the STOP button on the computer screen. Save your data by clicking on “File” in the menu, and selecting “Save.” Or start over by selecting DATA: clear all data.



Calculating the CO₂ Exchange Rate
Measurements of the rates of photosynthesis, and respiration in leaves are usually expressed as rates of CO₂ exchange per unit time and leaf area. The units most commonly used are µmol CO₂ m^-2 s^-1. To express your data in these units:

1. Calculate the difference between the CO₂ concentration in the reference and analysis gases. For example, if an experiment was conducted in air of 350 ppm CO₂, at a flow rate of 500 mL min^-1, the depletion of CO₂ due to leaf uptake in photosynthesis at high light may result in an analysis gas CO₂ concentration of 310 ppm. The difference between the reference and sample gas streams (∆CO₂ = Reference CO₂ - Sample CO₂) in this example would be 40 ppm (350-310).
2. Convert the ∆CO₂ value from (ppm) into (µmol CO₂ L^-1):



∆CO₂ in µmol CO₂ L^-1 = ∆CO₂ in ppm / 22.415 [(T + C) / T]

                                                   where C is the temperature in °C and T is the absolute temperature (273 K).

EXAMPLE: At a temperature of 20°C and a ∆CO₂ of 40 ppm, the ∆CO₂ would be equivalent to 1.66 µmol CO₂ L^-1:

40 ppm ∆CO₂ / 22.412 [ (273+20) / T] = 1.66 µmol CO₂ L^-1

      3. Multiply the ∆CO₂ value by the flow rate (in L s^-1) used in your experiment to obtain a CO₂ exchange rate per second.           For example, a flow rate of 500 mL min^-1 is equivalent to 0.0083 L s^-1. So the CO₂ exchange rate in our example would be           0.014 µmol CO₂ s^-1:

0.0083 L s^-1*1.66 µmol CO₂ L^-1 = 0.014 µmol CO₂ s^-1

Express your CO₂ exchange rate on a leaf area basis by dividing the CO₂ exchange rate by the leaf area in m². If the leaf completely filled your chamber, the area used in the calculation would be 9 cm², equivalent to 0.0009 m². The CO₂ exchange rate in our example would therefore be 15.6 µmol CO₂ m^-2 s^-1, which is a reasonable photosynthetic rate for a C3 species under ambient conditions.

0.014 µmol CO₂ s^-1 /0.0009 m² = 15.6 µmol CO₂ m^-2 s^-1

If you failed to record any of the essential data for your calculations during the experiment, you may retrieve the data from your saved file using the following procedure:

1. Open the file containing your data. Your data will appear on the screen exactly as they appeared when you saved them at the end of the experiment.
2. From the menu at the top of the screen select "Analyze" then "Examine". A vertical line will appear on the selected graph that moves horizontally with the mouse. A box will appear on the graph showing data and time values for each run displayed. As you move the cursor over the graph the numerical display in the box will change to show you the exact data point and time value. If the box obscures any part of the trace click on it and hold, then drag with the mouse to place the box in a convenient location.



Prepare a scatter graph of CO₂ consumption (µmol CO₂ m^-2 s^-1) at each light intensity for their plant. Examine the figure and select the maximum photosynthetic rate (notice at which light intensity the max is reached for your plant). Why are these data not suitable for statistical tests?

To compare maximum CO₂ consumption rates, we will compare data for each plant species to those collected by other students in BISC 111 over multiple years. These data are represented on the linked datasheet. On the main page, you will find data from both seasons pooled together and data separated by season in tabs on the bottom of the page; please be sure to enter your data on the appropriate sheet. Here is the datasheet: Cumulative data.

Assignments

1. During lab each student will create a graph using the cumulative data on photosynthesis provided.

2. Prepare for a workshop style presentation and discussion as directed by your lab instructor. The oral presentations are designed to expand your knowledge of plant anatomy and physiology, and to reflect on our experiments. The oral presentations topics and format will be described by your lab instructor. Be sure to sign up before leaving lab today.
