OUR TEAM

Name: Lauren Butler
Name: Lauren Butler
Name: Carlos Garrido
Name: Carlos Garrido
Name: Shannon Grassi
Name: Shannon Grassi
Name: Jennifer Le jennif14@asu.edu
Name: Jennifer Le jennif14@asu.edu
Name: Noah Pollack npollack@asu.edu
Name: Noah Pollack npollack@asu.edu
Name: James Wood
Name: James Wood

LAB 2 WRITE-UP

Descriptive Statistics

Experiment 1: Human Study
DATA

Dosage 0mg 5mg 10mg 15mg
5.23 10.72 100.19 793.17
1.01 9.29 75.92 476.67
4.23 8.46 23.46 771.45
1.87 10.19 70.87 795.09
3.67 7.29 19.27 181.27
2.98 7.54 99.65 752.78
5.83 8.67 38.37 934.23
5.24 6.15 76.26 554.87
4.27 10.92 35.25 692.23
4.01 10.09 76.98 627.65


Dosage 0mg 5mg 10mg 15mg
Mean (pg/mL) 3.83 8.93 61.62 657.94
Standard Deviation (pg/mL) 1.52 1.59 30.11 212.94
Count 10 10 10 10
Standard Error (pg/mL) 0.48 0.50 9.52 67.34



Experiment 2: Rat Study
DATA

Dosage 0mg 10mg
9.24 22.34
8.76 6.45
8.78 14.23
13.5 3.55
12.3 8.99


Dosage 0mg 10mg
Mean (pg/mL) 10.5 11.1
Standard Deviation (pg/mL) 2.23 7.40
Count 5 5
Standard Error (pg/mL) 0.9953 3.3107



Results

Experiment 1: Human Study
DATA

Dosage 0mg 5mg 10mg 15mg
5.23 10.72 100.19 793.17
1.01 9.29 75.92 476.67
4.23 8.46 23.46 771.45
1.87 10.19 70.87 795.09
3.67 7.29 19.27 181.27
2.98 7.54 99.65 752.78
5.83 8.67 38.37 934.23
5.24 6.15 76.26 554.87
4.27 10.92 35.25 692.23
4.01 10.09 76.98 627.65


alt=Graph of Effects of LPS on Humans
Note: * (asterisk) indicates the t-test revealed that the dosage was less than the P-value, .00833,
thus indicating that there is over 95% confidence in the accuracy and credibility in the graph.


HUMAN LPS DOSAGE GRAPH DATA:*
alt=Human Test Data
Note: Significant figures not applied



Experiment 2: Rat Study
DATA

Dosage 0mg 10mg
9.24 22.34
8.76 6.45
8.78 14.23
13.5 3.55
12.3 8.99

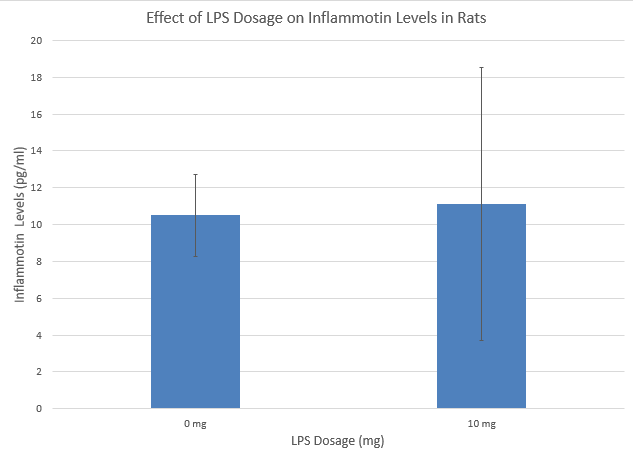

alt=Graph of Effects of LPS on Humans
Note: No * (asterisk) indicates the t-test revealed that the dosage was greater than the P-value, .05,
thus indicating that there is less than 95% confidence in the accuracy and credibility in the graph.


RAT LPS DOSAGE GRAPH DATA:*
alt=Rat Test Data
Note: Significant figures not applied



Analysis

Experiment 1: Human Study


ANOVA Table (select values only)

F P-value F-crit
87.25360195 1.40083E-16 2.866265551

The ANOVA test was selected to compare the significance between the dosage groups in the human study because more than 2 groups are being compared. The corrected p-value of the ANOVA test for the human study was 1.40083E-16 as shown above in blue, and because it was significantly lower than the alpha (α) p-value of 0.05, it indicates that there is a statistically significant difference among the LPS dosages and that further testing, i.e. ad-hoc test, must be done to determine the significance of the data.
Because the ANOVA test confirms that further testing is required, the p-value must also be corrected to show that the data is statistically significant and that there is 95% confidence in its accuracy. To adjust the p-value, the α p-value is divided by the number of comparisons in the ad-hoc test; in this case, there are 6 comparisons done. The p-value for this experiment is calculated as: 0.05/6 = 0.00833.


Significance Checks

Post-Hoc Tests T-test value Corrected p-value to achieve significance Significant?
0mg vs. 5mg 8.59631E-07 0.00833 Yes
0mg vs. 10mg 9.94377E-06 0.00833 Yes
0mg vs. 15mg 1.39436E-08 0.00833 Yes
5mg vs. 10mg 3.01859E-05 0.00833 Yes
5mg vs. 15mg 1.57101E-08 0.00833 Yes
10 vs. 15mg 6.4824E-08 0.00833 Yes


Experiment 2: Rat Study


T-test

Comparison T-test value P-value Significant?
0mg vs. 10mg 0.867403497 0.05 No

The simple t-test was chosen to compare the two groups, 0mg and 10mg LPS dosage, in the rat study because there were only two groups to compare for significance, and there fore there was not a need for the ANOVA test. The α p-value remains unchanged at 0.05 because there was no ANOVA test required to correct the p-value. Between the 0mg and 10mg groups, their t-test value was calculated to be 0.867403497, which is noticeably higher than the p-value; this indicates that there shows to be no statistical significance in this set of data.

Summary/Discussion

Experiment 1: Human Study

The goal of this study is to prove that there is a relationship between the dosage amount of the drug and the inflammotin levels in the human subjects. Each subject was given a dosage of 0mg, 5mg, 10mg, and 15mg. The results shown indicate their inflammotin levels after taking the drug. The mean was calculated to show the average level of inflammotin in each subject at the different dosage amounts and the standard deviation shows the variation of the results in the data set. The standard error shows the standard deviation of the mean of the data set results. The graph shown above depicts each data set and its error bars, which show the group variance. After the results were calculated, the ANOVA test was used to find the p-value, showing the percent confidence in the results. The p-value came out to be less than 0.05, indicating that t-tests are necessary to more accurately show the significance of the study. Each of the tests in this experiment show significance among the data.


Experiment 2: Rat Study

The goal of this study is to prove that there is a relationship between the dosage amount of the drug and the inflammotin levels in the rats. Each of the ten subjects was given a dosage of 0mg or 10mg; 5 rats on 0mg and 5 on 10mg. The results showed each rat’s inflammotin level after taking the drug. The mean was calculated to show the average level of inflammotin in each subject at the different dosage levels and the standard deviation shows the variation of the results in the data set. The standard error shows the standard deviation of the mean of the data set results. The graph shown above depicts each data set and its error bars, which show the group variance. After the results were calculated, a t-test was used to find if the results were significant. The t-test value was found to be greater than 0.05 and therefore is not significant.


Linking the Two Studies

Despite that both experiments used the same lipopolysaccharide drug, there remained huge differences among the two studies. For one, the human study revealed that all the collected data had significance, while in the rat study, the t-test revealed that there was no significance between the 0mg and 10mg rat groups. Even in the human ad-hoc test comparison with 0mg vs. 10mg, there showed to still be a statistical significance, which is the opposite of the rat comparison. This goes to show that despite similar drug dosages, the effects of certain drugs could react differently in different organisms. The rat data in the section Descriptive Statistics illustrates this possibility by how vastly different the subjects' inflammotin levels were even in the same dosage range.
