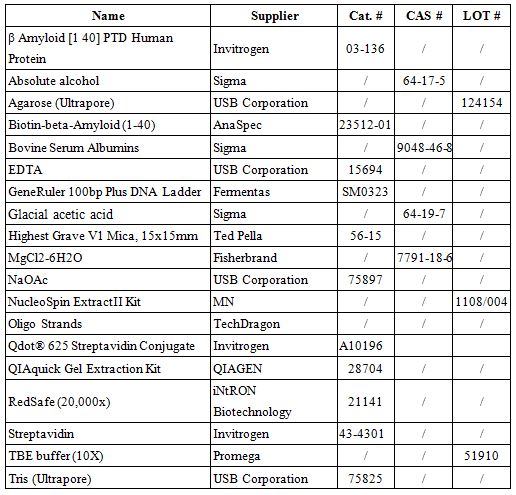

List of Materials

d
d

Design and Oligo List for DNA Origami

DNA origami was designed using caDNAno software (http://cadnano.org/).

d
d

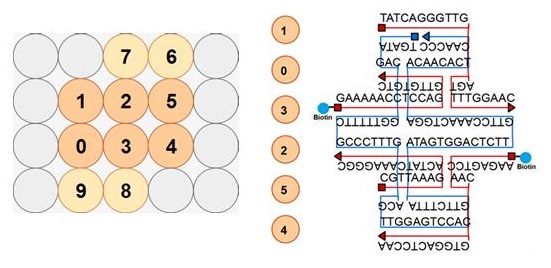

<html><p align="center">2D structure of the DNA origami</p></html>

d
d

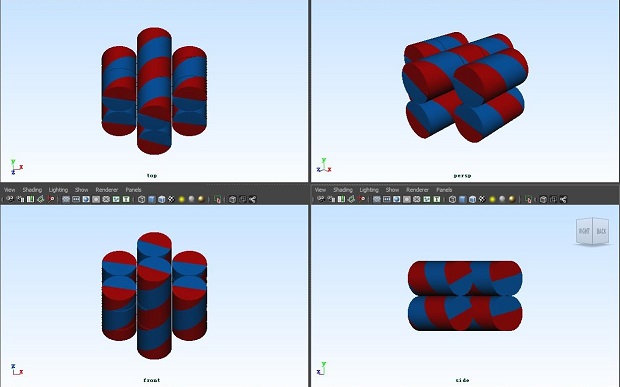

<html><p align="center">3D view of the DNA origami</p></html>

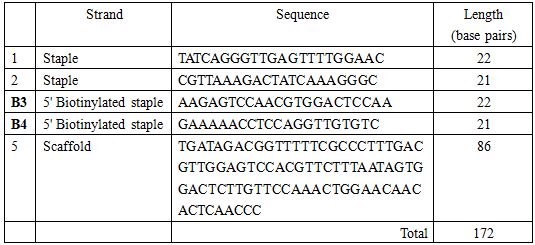

Oligo list for staple strands and scaffold

All the oligo strands were ordered from TechDragon Limited, Hong Kong.

d
d

Recipes for Self-assembling of DNA origami

100mL 20X DNA Folding Buffer:

d
d

Dilute with RNase free water to 100mL.

Staple strands and scaffold are combined in a 10:1 ratio so as to facilitate the chances of correct self-assembling.

d
d

Annealing condition

d
d

Agarose gel electrophoresis

1.5% agarose gel electrophoresis was conducted at 70 volts for 1 hour 45 minutes in an ice water bath to separate annealed samples. The result of gel electrophoresis was visualized by Bio-Rad ChemiDoc XRS.

Recipes for a 1.5% Agarose Gel:

d
d

Recipes for the Electrophoresis Buffer:

d
d


d
d

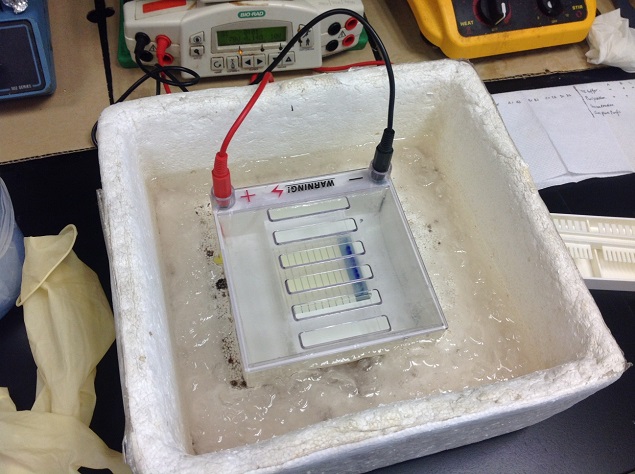

<html><p align="center">Establishment of Gel Electrophoresis</p></html>

Gel Extraction

(QIAquick Gel Extraction Kit)

1. Excise the DNA fragment from the agarose gel with a clean, sharp scalpel.

2. Weigh the gel slice in a colorless tube. Add 3 volumes Buffer QG to 1 volume gel (100mg~100uL). For >2% agarose gels, add 6 volumes Buffer QG.

3. Incubate at 50C for 10 min (or until the gel slice has completely dissolved). Vortex the tube every 2~3 min to help dissolve gel.

4. After the gel slice has dissolved completely, check that the color of the mixture is yellow (similar to Buffer QG without dissolved agarose). If the color of the mixture is orange or violet, add 10uL 3M sodium acetate, pH 5.0, and mix. The color of the mixture will turn yellow.

5. Add 1 gel volume of isopropanol to the sample and mix.

6. Place a QIAquick spin column in a provided 2ml collection tube.

7. To bind DNA, apply the sample to the QIAquick column and centrifuge for 1 min. Discard flow-through and place the QIAquick column back into the same tube. For sample volumes of >800uL, load and spin/apply vacuum again.

8. Add 0.5 ml Buffer QG to the QIAquick column and centrifuge for 1 min. Discard flow-through and place the QIAquick column back into the same tube.

9. To wash, add 0.75 ml Buffer PE to QIAquick column and centrifuge for 1 min. Discard flow-through and place the QIAquick column back into the same tube.

10. Centrifuge the QIAquick column once more in the provided 2 ml collection tube for 1 min at 17,900 * g to remove residual wash buffer.

11. Place QIAquick column into a clean 1.5 ml microcentrifuge tube.

12. To elute DNA, add 50uL Buffer EB (10mM Tris*Cl, pH8.5) or water to the center of the QIAquick membrane and centrifuge the column for 1 min. For increased DNA concentration, add 30uL Buffer EB tot eh center of the QIAquick membrane, let the column stand for 1 min, and then centrifuge for 1 min. After the addition of Buffer EB to the QIAquick membrane, increasing the incubation time to up to 4 min can increase the yield of purified DNA.

13. If the purified DNA is to be analyzed on a gel, add 1 volume of Loading Dye to 5 volumes of purified DNA. Mix the solution by pipetting up and down before loading the gel.

(Nucleospin Extract II)

1. Excise the DNA fragment from the agarose gel using a clean scalpel.

2. Transfer the cut portion to a clean tube and determine the weight.

3. Add 200μL Buffer NT per 100mg agarose gel.

4. Incubate the sample for 5-10 min at 50°C. Vortex the sample every 2-3 minutes.

5. Load the dissolved sample into a NucleoSpin Extract II Column. Centrifuge for 1min at 11,000 rcf. Discard the flow-through.

6. Wash the silica membrane by adding 700μL Buffer NT3 to the NucleoSpin Extract II Column. Centrifuge for 1 min at 11,000 rcf. Discard the flow-through.

7. Dry the silica membrane through centrifugation at 11,000 rcf for 2 minutes.

8. Elute the DNA into a new 1.5 mL microcentrifuge tube by adding 50 μL Buffer NE, incubate at room temperature for 1 minute, and centrifuge for 1 minute at 11,000 rcf.

DNA Precipitation

1. Add 1/10 volume of 3M sodium acetate (NaOAc) (pH 5.2) plus 2-3 volumes of cold 100% ethanol (ETOH) to the solution containing DNA.

2. Place the solution at -20°C overnight.

3. Centrifuge the solution at 14,00O RPM for 10-20 minutes at 4°C. Remove the ETOH and rinse the pellet with 70% ETOH.

4. Centrifuge the re-suspended pellet again at 14000 RM for 5 minutes at 4°C. The ETOH is removed and the pellet is air-dried for about 10 min.

5. Re-suspend the pellet for later use.

SEM imaging

SEM images were captured using LEO 1530 Field Emission SEM (Carl Zeiss, Germany). Mica sheet (Ted Pella, U.S.A.) was attached onto the holder and coated with a thin gold layer prior to the sample settlement. To achieve resolution, 20µL of the quantum dot samples were applied onto the gold-coated surface and allowed drying overnight. Before scanning, the mica sheet was mounted onto the holder using a thin carbon tape. The accelerating voltage of the SEM electron gun is 15kV, and the magnification of the images ranges from 250X to 100kX. The images were analyzed by ImageJ software.

d
d

<html><p align="center">Block Diagram of the Scanning Electron Microscope</p></html>

AFM imaging

Preparation of QD-Origami-attached Biotinylated Abeta Fibril Platform.

1. Dilute stock 20% biotinylated Aβ1-40 fibrils to 500nM by phosphate buffer;

2. Add 5μL 500nM streptavidin into 5μL 500nM fibrils; allow incubation for 10 minutes;

3. Add 5μL 2nM DNA origami; allow incubation for 10 minutes;

4. Add 5μL 2nM quantum dots; allow incubation for 10 minutes;

5. Apply the final solution onto freshly-cleaved mica surface. Dry sufficiently before AFM study.

Atomic Force Microscopic Observation.

The samples were tested on AFM platform under the observation of inverted microscopy (Bruker Nano, Santa Barbara, CA). In order to achieve resolution, the samples were applied onto freshly-cleaved 15x15mm mica sheet (Highest Grave V1, Ted Pella, U.S.A.) for immobilization during pretreatment. A sharp AFM tip (RTESPA, Bruker-nano, Santa Barbara, CA) was used to scan the samples in tapping mode with a scan rate of 1 Hz. All the images were analyzed by NanoScope Analysis Version 1.40.

FM imaging

Preparing Cover Glasses.

1. Sonicate No.1 22 X 22 square mm cover glasses (Corning, NY) for 5 minutes in absolute alcohol;

2. Rinse the glasses in NaOH solution for 40 minutes;

3. Rinse the glasses in glacial acetic acid for 15 minutes;

4. Rinse the glasses in distilled water for 5 minutes for three times;

5. Dry the clean glasses at 140°C oven for about 15 minutes and stored in a beaker for future usage.

Preparation of Aβ1-40 Fibrils for Seeding.

1. To make the stock solution, dissolve 1mg Monomeric Aβ1-40 (Invitrogen) in 400 μL ice-cold 0.02% ammonia solution and store at -80°C.

2. Dilute 50 μL stock solution 50 μM with phosphate buffer (PB, 50 mM sodium phosphate, 100 mM sodium chloride, pH 7.4). Incubate in 37°C water bath and shake gently for 20 hours. Store at -18°C until use.

3. To achieve first generation of Aβ seedings, sonicate aliquot of stock fibrils for 5 seconds (thrice), and add 2 μL of the as-prepared fibrils into 5 μL of monomeric Aβ1-40. Dilute to 50 μL with PB.

4. Incubate the mixture at 37°C for 1 hour.

5. Sonicate the resultant fibrils for 5 seconds (thrice). The second generation of seedlings is used for the seed-mediated fibrillation.

Preparation of 20% Biotinylated Aβ1-40 Fibrils.

1. Dilute stock Biotin-Aβ1-40 monomers (Anaspec, CA) with 0.02% ammonia solution to 100 μM.

2. Mix monomeric biotin-Aβ1-40 and Aβ1-40 in 1:5 ratio with a total Aβ concentration of 50 μM.

3. 0.87 μg/mL of prepared Aβ1-40 seeding was added to the solution to speed up the rate of fibrillation.

4. Incubate the peptide at 37°C for 60 minutes.

5. Dilute the as-prepared fibrils to appropriate concentration with PB before the experiments.

Preparing Samples on the Surface of Flow Cell.

1. Combine two precleaned cover glasses with double-sided adhesive tapes, with the width of each channel around 3 mm. Observe the flatness and ensure there is no gap between channels.

2. Add glue around the flow cell to make a region for applying solutions.

d
d

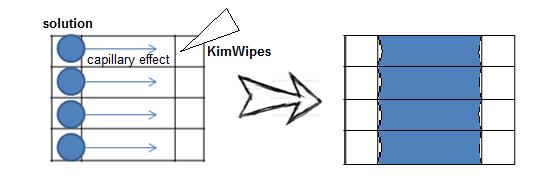

<html><p align="center">Diagram of the Sealed Flow Cell</p></html>

d
d

<html><p align="center">Flow Cell</p></html>

3. Introduce 10 μL of phosphate buffer (PB) into the flow cell under the force of capillary action. Withdraw the excess solutions at the outlet with Kimwipes by capillary force.

4. Introduce 10 μL of 500 nM 20% biotinylated-fibril solution under the force of capillary action; allow settlement for 5 minutes.

5. Introduce 10 μL PBS buffer with 1% of bovine serum albumin to minimize nonspecific adsorption of DNA origami and Streptavidin-QD625 on the surface. Incubate for 30 minutes at room temperature.

6. Introduce 10 μL 50nM streptavidin; allow settlement for 5 minutes.

7. Introduce 10 μL 2nM DNA origami; allow settlement for 5 minutes.

8. Introduce 10 μL 2nM streptavidin-QD625; allow settlement for 5 minutes.

9. PB is introduced between each step of introducing new solutions and after the addition of streptavidin-QD625 to wash away unbound substances.

Fluorescent Microscopic Observation.

The flow cell was placed under the home-built prism-type total internal reflection fluorescence (TIRFM) system for imaging with the excitation of a 488-nm laser for the study of DNA-origami and Streptavidin-QD625 on biotinylated fibrils. Images were obtained with the WinSpec/32 software (Version 2.5.22.0, Downingtown, PA) provided by Princeton Instruments. Ten images were captured sequentially at the same location, and the size of each image is 0.267 μm x 0.267 μm.

For the information of the principle of Total Internal Reflection Fluorescent Microscope, see Chan HM, Chan LS, Wong RNS, Li HW: Direct Quantification of Single-Molecules of MicroRNA by Total Internal Reflection Fluorescence Microscopy (2010). All the images were analyzed by Metamorph.
