Overview

Description

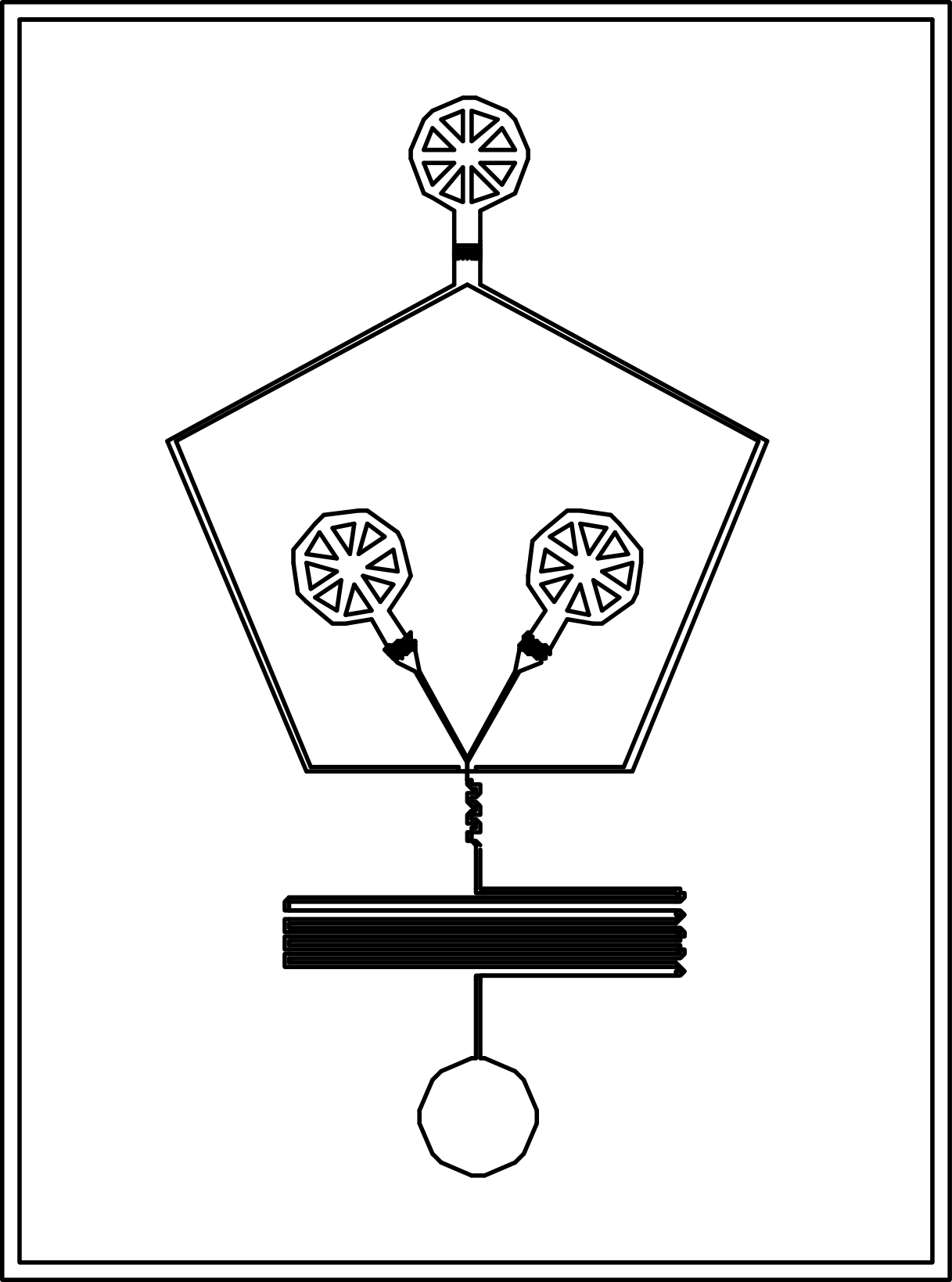

• Dual aqueous inlet flow-focusing junction of 18 µm width with short delay channel

Reference

Kintses B., Hein C, Mohamed MF, Fischlechner M, Courtois F, Lainé C, Hollfelder F, Chemistry & Biology 2012, Picoliter cell lysate assays in microfluidic droplet compartments for directed enzyme evolution, 19(8):1001-9.

Submitted by: Balint Kintses




Downloads

  1. 18 μM: png, dxf, dwg




Usage Notes

Please enter any comments that other users may find useful below this note (such as flow rates that worked well for particular oil/aqueous phases). When providing usage notes please provide as much detail as useful. We would request that you 'sign' any comments with your initials.

With flow rates of aqueous phase 200 µL/h total and oil 1300 µL/h this device gave 35 µm droplets at a throughput of ~6 kHz. SD
