Cluster Set Up

Setup of FEMR Cluster 2020/05

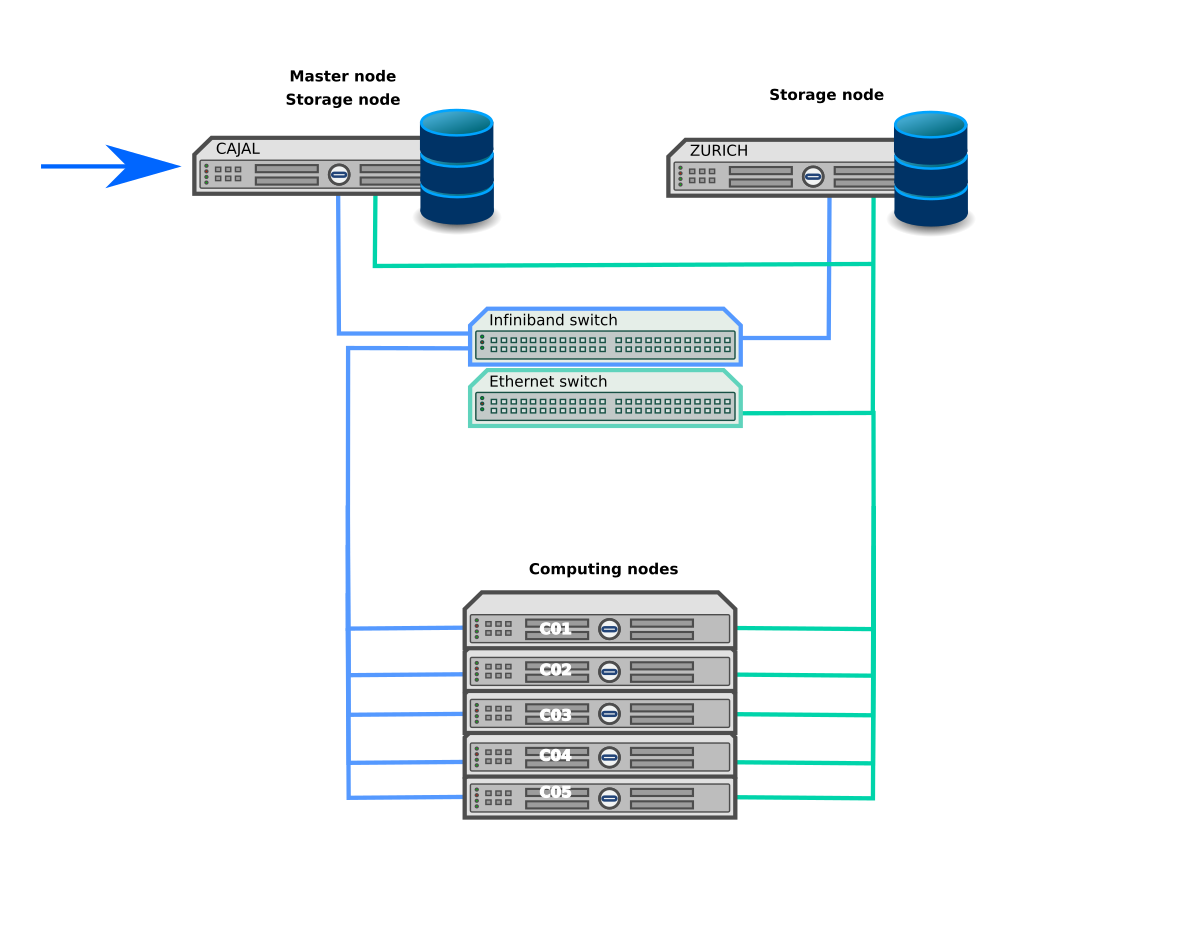

File:Cajal-diagram.zip Original diagram (editable, SVG format)

Name RAM CPU Cores Speed GPU
cajal 256 E5-2630 v4 2 x 10 2.2 Ghz -
c01 512 E5-2698 v4 2 x 20 2.2 Ghz 6 x Titan XP (12 GB)
c02 512 E5-2698 v4 2 x 20 2.2 Ghz 6 x Titan XP (12 GB)
c03 256 E5-2630 v4 2 x 10 2.2 Ghz 4 x GTX 1080 (8GB)
c04 512 E5-2698 v4 2 x 20 2.2 Ghz 5 x Titan XP (12 GB)
c05 512 E5-2698 v4 2 x 20 2.2 Ghz 2 x Titan V (12GB)
zurich 128 E5-2690 v3 2 x 12 2.6 Ghz 1 x GTX 980 (4GB)



Logging In

The FEMR cluster employed public & private keys system for logging in. No password is used.

Generating private & public key

In your private computer (Mac or Linux), type:

ssh-keygen -f ~/user

This will create 2 files user and user.pub. user (file) is your private key, where you should KEEP for yourself while user.pub is your public key, which will be placed on the server by the FEMR cluster admin.

Getting approval

Ask permission from your group leader to create your account and sent him/her your public key (user.pub) so that the FEMR cluster admin can place it on the cluster. It is preferable to have your username and private key with the same name.

Logging in using your key

Once your acc is approved, to log in, type:

ssh -i path_to_private_key -Y username@cajal.campus.mcgill.ca


Example:

ssh -i ~/user -Y username@cajal.campus.mcgill.ca


Storage

Storage location

  • cajal: Guarne/Vargas/Ortega Lab (/data)
  • zurich: Bui Lab (/mnt/zurich/data0)


Navigate to storage space:

cd /data/jvargas

or

cd /mnt/zurich/data0/


Queues

The cluster employs a job queue system (SLURM). The job sent to the queues will be calculated in the computing nodes while the interactive job will run directly on Cajal, which is not recommended because Cajal acts as a head node and storage node.

There are two main GPU queues (titan and gtx) and two cpu queues (cpu and cpusmall)

titan

Use to run class2d, class3d and Refine3d. GPU intensive jobs.

Three nodes. Each node has 6 GPU, 40 cores and 80 threads

When running GPU jobs these nodes will take 7 cores to manage GPUs during the job

titansmall

Use to run class2d, class3d and Refine3d. GPU intensive jobs.

One node with 3 GPU, 10 cores and 20 threads

When running GPU jobs these nodes will take 4 cores to manage GPUs during the job

gtx

Huy node (1)

Use to run MotionCor2 and GctF

One node with 4 GPU, 20 cores and 40 threads

When running GPU jobs these nodes will take 5 cores to manage GPUs during the job

cpu

Cores left for cpu based jobs: 30 cores per node.

mpi=30 Thread=2

There are four nodes in this queue. In principle you could assk for mpi=60 but not recommended. It will take longer to enter in the queue. About mpi=20-30 is reasonable for any job.

cpusmall

Cores left for cpu based jobs: 14 cores in this queue.


Software on the cluster

Load module

In the cluster, before using any program, you have to load it first. Type:

module load program_name

or

module add program_name

("load" and "add" are equivalent).

For example:

  • Relion
module load relion
  • Scipion
module load scipion
  • Imod
module add imod
  • Matlab
module load matlab
  • Anaconda
module load anaconda

One of the advantages of modules is that it is easy to select which version of the software you want to use. Check what versions are available (see below), then include the version in the command

module load relion/2.1.0

When no version is specified, latest version available on cluster is loaded

Load MotionCor2 is a bit different

spack load --dependencies motioncor2

Check available module/software

module avail

Check what modules are loaded

module list

Unload modules

module purge


Running Jobs on the cluster

Check the status of the queue

To see how busy the cluster is, type:

sinfo

You will get something like this:

    PARTITION AVAIL  TIMELIMIT  NODES  STATE NODELIST
    titan        up 7-00:00:00      2   idle c[01-02]
    gtx          up 7-00:00:00      1   idle c03
    cpu          up 7-00:00:00      2   idle c[01-02]
    cpusmall*    up 7-00:00:00      1   idle c03

In NODES STATE this is what it means:

  • Idle: No jobs running
  • Mixed: Some resources available
  • Allocate: all resources in use.

sinfo has lots of options. For example, to get a more detailed view of resource usage:

sinfo -N --format="%.10P %.8N %.16C %G"
 PARTITION NODELIST    CPUS(A/I/O/T) GRES
     titan      c01       48/32/0/80 gpu:titan:6
       cpu      c01       48/32/0/80 gpu:titan:6
     titan      c02        8/72/0/80 gpu:titan:6
       cpu      c02        8/72/0/80 gpu:titan:6
       gtx      c03        0/0/40/40 gpu:gtx:4
 cpusmall*      c03        0/0/40/40 gpu:gtx:4
     titan      c04       12/68/0/80 gpu:titan:6
       cpu      c04       12/68/0/80 gpu:titan:6
titansmall      c05       24/56/0/80 gpu:titan:3
       cpu      c05       24/56/0/80 gpu:titan:3

The format for CPUs is: Available/Idle/Unavailable/Total. GRES reports the number and type of GPU available.


See jobs running in queues

Type:

squeue

Typical output:

             JOBID PARTITION     NAME     USER ST       TIME  NODES NODELIST(REASON)
               729       gtx     1005      sky PD       0:00      1 (Resources)
               728       gtx   Relion    wasit  R 1-23:05:38      1 c03
               734       cpu     2652    sheny  R 1-03:30:21      1 c01


Killing jobs in queue or running

See jobs in queue by typing

squeue

Then look at the JOBID and type:

scancel JOBID

For example:

scancel 45


Submit a job

sbatch submit.script

The submit.script will be described below.


Submission Script Format

Example of Submission Script

#!/bin/bash
#SBATCH --time=2-0
#SBATCH --ntasks=1
#SBATCH --partition=cpusmall
#SBATCH --error=error.log
#SBATCH --output=frames_to_stack.log
#SBATCH --job-name=frames_to_stack
#SBATCH --mem 1000

module load imod

inputDir='Frames'
outDir='Movies'

for i in ${inputDir}/*n0.mrc;
do
        foo=${i/_frames_n0.mrc}
        foo=${foo#${inputDir}/}
        newstack ${inputDir}/${foo}_frames_n*.mrc ${outDir}/${foo}_frames.mrcs
done

Explanation of the flag

  • --time estimation of how long the job will take. Format: days-hours or hours:minutes:seconds.
  • --ntasks number of mpi thread
  • --partition queue_name
  • --error error output file
  • --output output file
  • --job job name displayed with squeue
  • --mem memory used in Megabytes


To submit jobs to the queue, submission scripts are used (files with ".sbs" extension in any of the Relion directories)

  • Standard submission script for relion for GPU, Titan queue (it will be prefilled in the interface):
/usr/local/relion/3.1.2/bin/relion_slurm_titan.sbs
  • Standard submission script for relion for GPU, GTX queue (it will be prefilled in the interface):
/usr/local/relion/2.1.0/bin/relion_slurm_gtx.sbs
  • Standard submission script for relion for GPU, Titan small queue (it will be prefilled in the interface):
/usr/local/relion/2.1.0/bin/relion_slurm_titansmall.sbs
  • Standard submission script for relion for CPU jobs:
/usr/local/relion/2.1.0/bin/relion_slurm_cpu.sbs
  • Standard submission script for relion for CPU jobs (cpu_small queue):
/usr/local/relion/2.1.0/bin/relion_slurm_cpusmall.sbs

Running Job on Relion

In Relion, the script will be submitted automatically if you fill info in the Running tab and press Run (See picture bellow). However, you have to monitor the job yourself and kill it yourself.

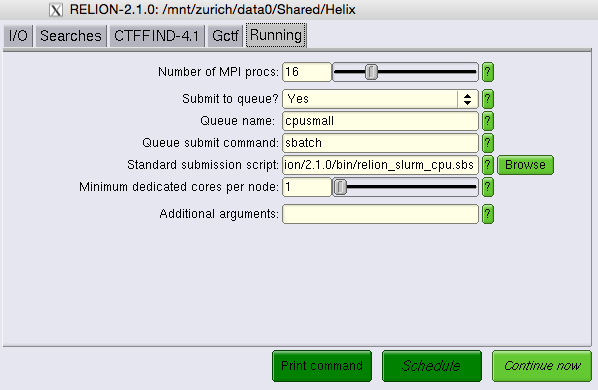

Submission with cpu job

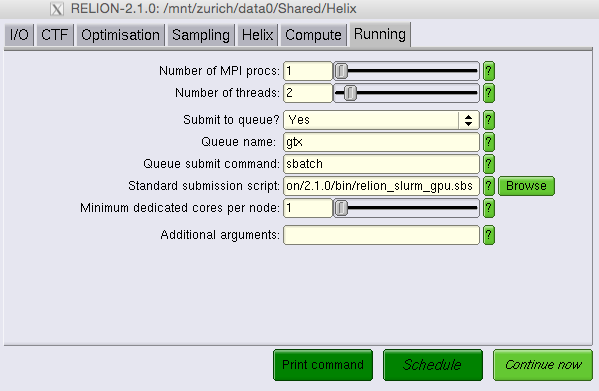

Submission with gpu job to GTX queue

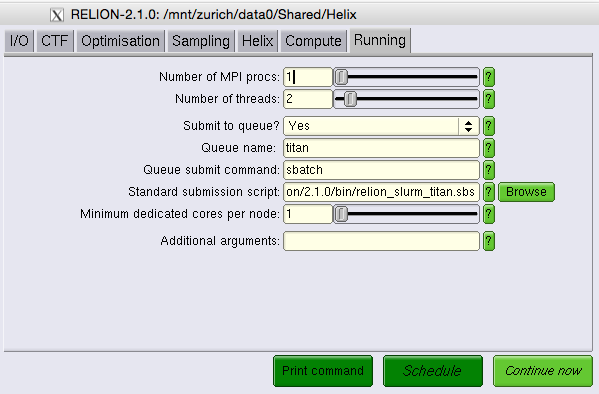

Submission with gpu job to TITAN queue


Running Job on Scipion

In Scipion, the script will be submitted automatically and when you cancel the job, it will be canceled automatically from the interface.

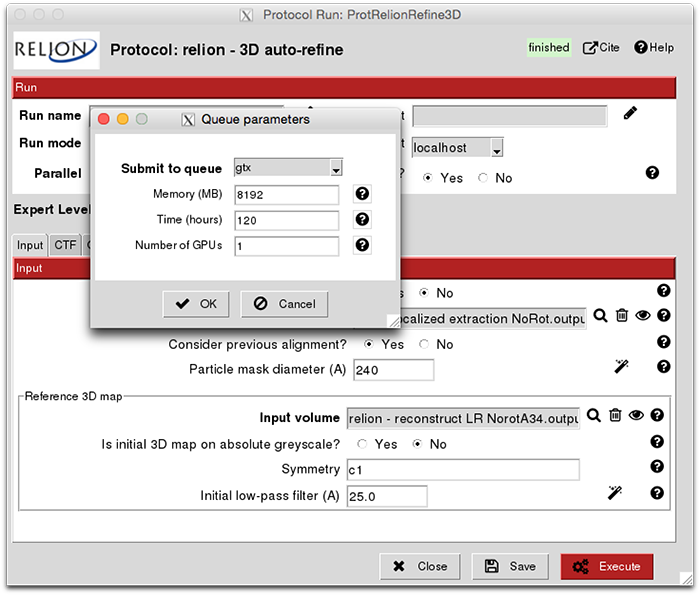

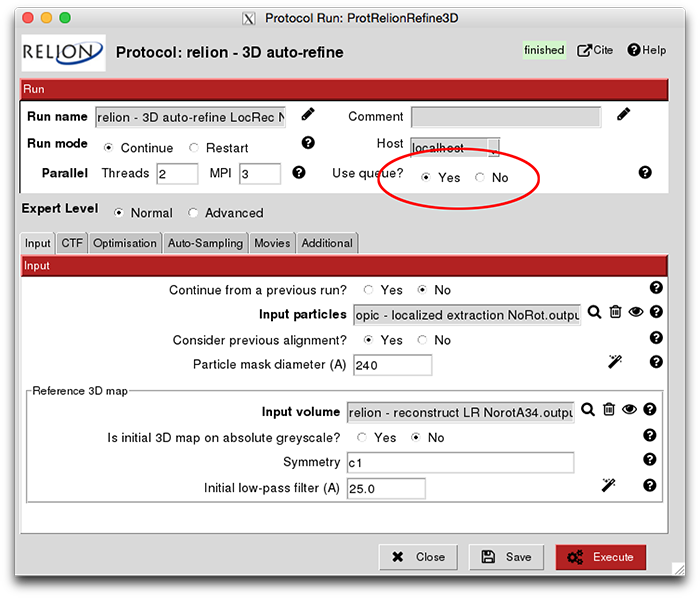

Select option to submit job to queue in Scipion


Select queue to submit job

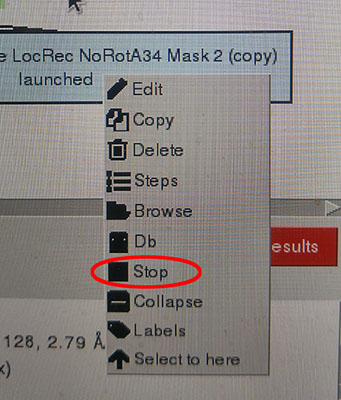

Cancel job by right click at the running protocol



Frealign Submission Script
