DESCRIPTION

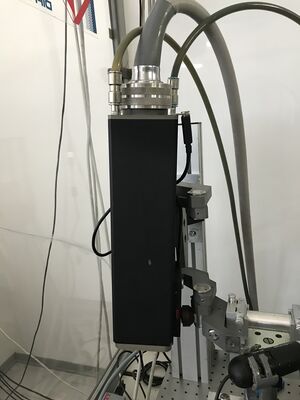

XRD Glass Tube is a X-Ray Diffraction Tube with a Molybdenum anode. Its power supply is ITAL STRUCTURES: Compact 3K5.

FEATURES
Target

Mo

Focal Spot

Long Fine Focus (LFF)

Max. Power

3 kW

Max. Anode Current

55 mA

Max. Tension

60 kV

Thickness Be Window

300 µm

Transmission

98 %

Other info here: File:XRD Tube.pdf
