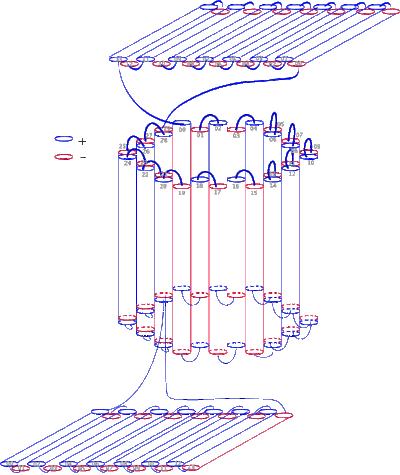

Design details

based on n = 0.324 nm, d = 3.0 nm

Shape	Lid ply	Cylinder design	Lid design	Total scaffold length
honeycomb hexagon	single	30 tubes (29.0 nm dia) x (84+12)bp long (30.8 nm) = 2880bp	14 tubes (34.2 nm) x (84+12)bp long (30.8 nm) = 1344bp each	2880+(2*1344) + (3*200)bp linkers = 6168 bp
